High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination

High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination

Ampliación de imagen :  High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination

Datos del producto:
Lugar de origen: Anhui
Nombre de la marca: Innovo Bochen
Certificación: CE
Número de modelo: GFH-1500/1700
Pago y Envío Términos:
Cantidad de orden mínima: 1 juego
Precio: 55000-70000USD
Detalles de empaquetado: Bolsa de vacío
Tiempo de entrega: 30-45 días
Capacidad de la fuente: 30 juegos por mes
Contacto

High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination

descripción
Pago: T/T o L/C Peso neto de la máquina: 9800KG
Tipo de laminación: papel a cartón o cartón a corrugador Línea velocidad máxima: 215m/min o 20000pcs/hora
tiempo de garantía: 2 años o 24 meses Tamaño máximo de la hoja: 1500*1500 mm y 1700*1700 mm
Fuente de alimentación: 380V/50Hz 3 fases Grueso de papel de la cara: Papel o cartón impreso de 100-800 g/m²
Tipo de Maeketing: Completamente inteligente Fuerza: 33kw
Solicitud: Laminando cartón y cartón corrugado
Resaltar:

high speed flute laminator machine

,

flute laminator with lead edge feeding

,

corrugated lamination machine with top sheet alignment

High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination
Reduced Glue Consumption in Corrugated Lamination
Performance Characteristics
  • Lead edge feeding system: No feeding pressure structure, prevents damage to corrugated material while enhancing pressure resistance.
  • Top sheet aligner system: Ensures high accuracy with optional overlap or separation sheet feeding modes.
  • Digital glue volume control: Automatic adjustment of glue volume and gluing roller gap based on bottom sheet thickness.
  • Large stainless steel anilox roller (160mm diameter): Provides stable, high-efficiency operation with even coating and glue savings.
  • Automatic paper detection: Servo correction technology ensures top paper accurately tracks bottom paper.
  • Dual-use lifting platform: Accommodates both pre-stacker paper feeding and direct stack feeding.
  • Multifunctional rack: Designed for curved corrugated materials.
  • Circulating glue system: Reduces glue loss and maintains stable adhesion.
  • One-click adjustment: Whole machine setup with simple paper size input.
  • Order memory function: Quick recall of previous settings for efficient operation.
  • Video monitoring: Optional system for operational oversight.
Technical Specifications
Model GFH-1500A GFH-1700A GFH-1900A GFH-2200A
Max size 1500×15000mm 1700×1700mm 1900×1900mm 2200×2100mm
Min size 380*400mm 400×400mm 450×450mm 500×500mm
Top Paper 120-800g 120-800g 120-800g 120-800g
Bottom paper 300gsm-10mm Corrugated board and cardboard
Max speed 200m/min 200m/min 200m/min 200m/min
Power 28kw 30kw 33KW 35KW
Stick accuracy ±1.0mm ±1.0mm ±1.0mm ±1.0mm
Structural Features
  • Advanced transmission control system with automatic paper size adjustment
  • Computerized high-speed fitting capability (up to 18,000 pieces/hour)
  • Chuanliu-type air supply head with multiple nozzle configurations
  • Feida Block system for efficient cardboard handling with optional track-assisted pre-stacker
  • Multiple electric eye sensors for precise paper alignment
  • Full-function electronic control system with human-machine interface and PLC monitoring
  • Automatic glue replenishment system with recycling capability
System Components

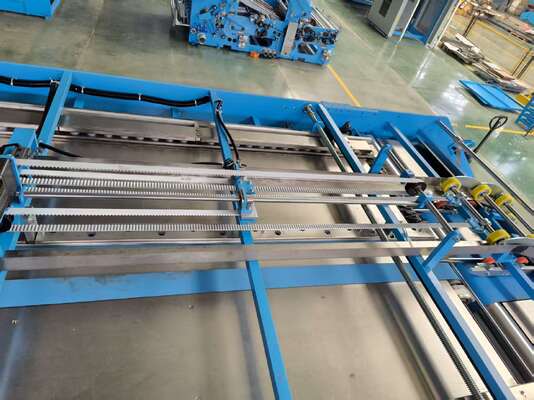

Bottom Paper Feeding
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 0
Servo motor controlled system with Japan NITTA suction belt for smooth operation

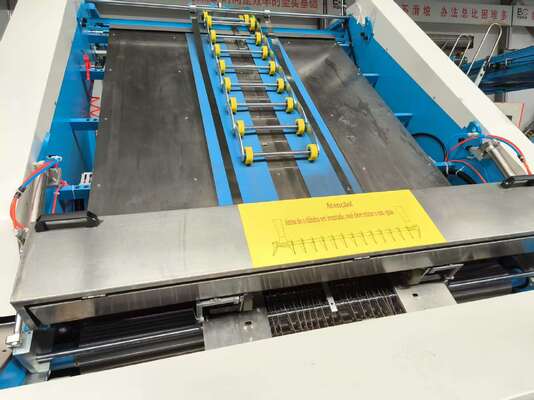

Top Sheet Feeding Mechanism
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 1 High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 2
Adjustable system for both thin and thick paper with Becker pump for smooth operation

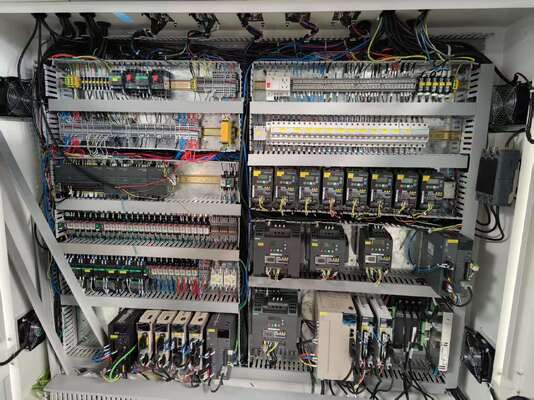

Electrical System
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 3
CE-compliant system with PLC and human-machine interface for comprehensive monitoring
Pre-Stack Part
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 4
Automated system reduces setup time with preset paper size configuration
Transmission System
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 5 High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 6
Gates synchronical belt with SKF bearings for stable operation
Left-Right Positioning System
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 7
Positioning System & Glue Roller
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 8
Precision stainless steel roller with multiple photoelectric sensors for accurate alignment
Touch Screen Operation System
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 9
Centralized control with real-time monitoring and troubleshooting
Big Suction System for Bottom Paper (Optional)
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 10 High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 11
Optional system for enhanced handling of cardboard and multi-layer materials
Automatic Lubrication System
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 12
Regular bearing lubrication extends component lifespan
Shaftless Servo Feeder (Optional)
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 13
Optional system ideal for long size top sheets
Video Monitoring (Optional)
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 14
Optional system for remote machine monitoring

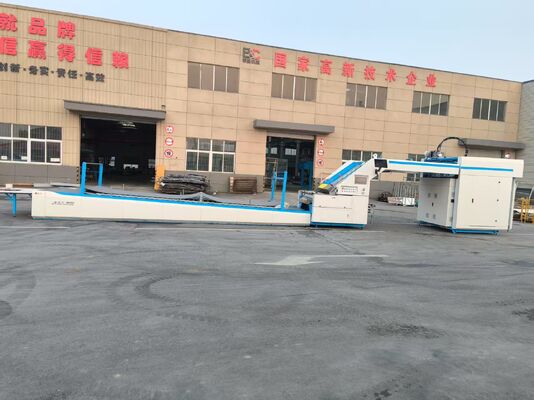

Machine Overview
High Speed Flute Laminator Machine Equipped with Lead Edge Feeding and Top Sheet Alignment Systems for Optimal Corrugated Lamination 15
