Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating

Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating
Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating
Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating

Ampliación de imagen :  Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: INNOVO
Certificación: CE
Número de modelo: ZGFM-1500D/1700D
Pago y Envío Términos:
Cantidad de orden mínima: 1 juego
Precio: USD45000-60000
Detalles de empaquetado: Empaquetado de la plataforma y de la película del hierro
Tiempo de entrega: 20-30 días
Condiciones de pago: LC, T/T
Capacidad de la fuente: 30 juegos/mes
Contacto

Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating

descripción
Suministro de personalización: Como demanda del cliente Tiempo terminado: Aproximadamente 20 días hábiles
Velocidad máxima de trabajo: 180 metros/minuto y 17000 hojas por hora Espesor de alimentación de lámina de fondo máximo: Flauta de 8-10 mm
Tamaño de la junta mínima: 38*40 cm y 40*40 cm Exactitud del palillo: ± 1.0 mm
Tamaño máximo de papel: el 170*170cm Fuerza: 22kW, 25kW, 27kW, 30kW
Resaltar:

automatic flute laminator machine for corrugated paperboard

,

high speed litho laminating machine

,

automatic laminator with warranty

Automatic High Speed Flute Laminator Laminating Machine For Corrugated Paperboard Lamination Litho Laminator
High-Performance Corrugated Paperboard Lamination Solution
The Professional Automatic High Speed Flute Laminator Machine delivers superior performance for corrugated paperboard lamination. This industrial-grade solution handles a wide range of materials from 180-800g/m thin paper to 0.5-10mm paperboard, including single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, and styrofoam board.
Key Features
  • Maximum speed of 17,000 sheets per hour (180m/min)
  • Handles materials from 180-800g/m thin paper to 10mm flute board
  • Customizable configurations to meet specific production requirements
  • Touch screen automatic adjustment system
  • Maximum paper size: 170×170cm
  • Precision lamination with ±1.0mm stick accuracy
Technical Specifications
Parameter Specification
Max Bottom Sheet Feeding Thickness About 10mm Flute
Applicable Materials 180-800g/m thin paper, cardboard, 0.5-10mm paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board
Stick Accuracy ±1.0mm
Min Board Size 36×38cm and 38×40cm
Adjust Type Automatic By Touch Screen
Laminating Type Corrugated+cardboard
Dimensions 16300×2400×2550mm
Max Speed 17000sheet/hour (180m/min)
Advanced Structural Features
This laminator incorporates world-class engineering including a leading transmission control system, computerized high-speed fitting, Chuanliu-type air supply head, Feida Block with low stack cardboard, multiple sets of electric eyes for paper alignment, full-function electronic control system, and automatic glue replenishment system.

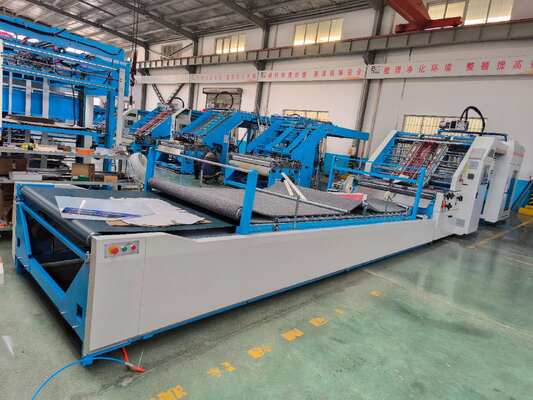

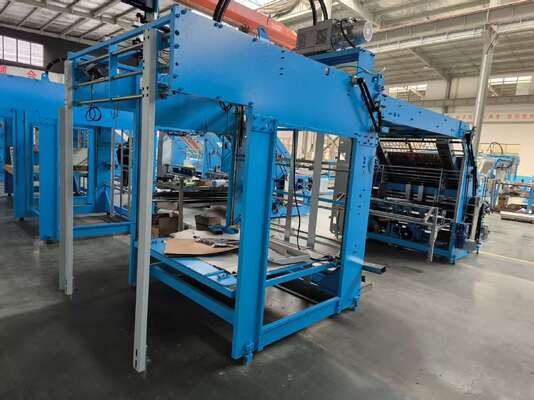

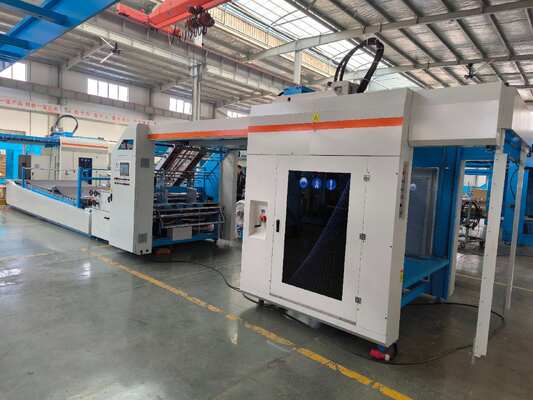

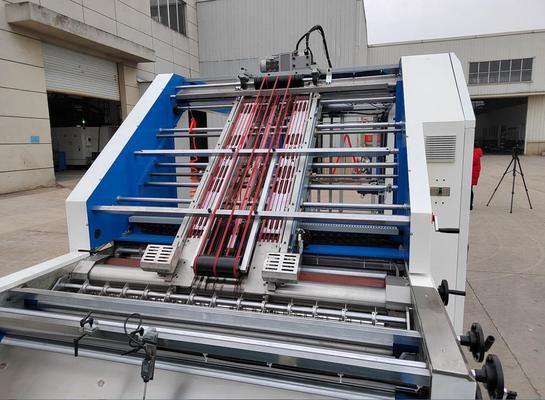

Product Images
Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating 0 Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating 1 Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating 2 Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating 3 Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating 4 Automatic Flute Laminator Machine Optimized to Deliver High Speed Corrugated Paperboard Lamination and Litho Laminating 5
Support & Services
Our comprehensive support package includes installation assistance, operator training, troubleshooting, and maintenance services to ensure optimal machine performance throughout its lifecycle.
Packaging & Shipping
The machine is securely packaged with protective materials and shipped via reliable carriers. Standard packaging includes iron pallet and film wrapping to ensure safe transportation.
Frequently Asked Questions
What is the brand and model of this machine?
This is the INNOVO Automatic Flute Laminator Machine, model ZGFM1700 with CE certification.
Where is this machine manufactured?
The machine is manufactured in China to international quality standards.
What are the payment terms?
We accept L/C and T/T payment methods with a minimum order quantity of 1 set.
