PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging

PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging
PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging
PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging

Ampliación de imagen :  PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging

Datos del producto:
Lugar de origen: Anhui
Nombre de la marca: Innovo Bochen
Certificación: CE
Número de modelo: PT1300/1450/1650/1900
Pago y Envío Términos:
Cantidad de orden mínima: 1 set
Precio: 23000-45000USD
Detalles de empaquetado: Bolsa de vacío
Tiempo de entrega: 15-30 días
Capacidad de la fuente: 50 conjuntos por mes
Contacto

PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging

descripción
Peso de carga de máquina: 1,5 toneladas Modelo de máquina: PT-1300/1650
Paquete de exportación: Bolsa de vacío con soporte de hierro Informe de prueba de maquinaria: ningún problema
Energía del equipo: 22kW, 380V, 3fases Tamaño material mínimo: 50*60 cm o más
Soporte de video: puede suministrar Tamaño máximo de la plataforma: el 130*80cm
Resaltar:

1.5 Tons Loading Weight Pile Turner Machine

,

PT-1300/1650 Model Paper Pile Turner

,

50*60cm Min Material Size Stack Turner

Pile Turner Machine With Dust Removal and Air Alignment in Printing and Packaging Industry

This pile turner machine is designed for dust removal and air alignment in the printing and packaging industry, significantly improving work efficiency and print quality.

Machine Introduction

The Pile Turner performs multiple functions including turning, airing, aligning, jogging, dust removal, drying, conditioning, ionizing, pallet changing, centering, and sheet pulling. It is essential equipment for enhancing productivity and print quality in industrial printing operations.

Technical Specifications
Model 1300 1450 1650 1900
Max sheet size 800×1300mm 1100×1450mm 1200×1700mm 1400×1850mm
Min sheet size 500×600mm 500×600mm 500×600mm 500×600mm
Loading weight 1000kg 1400kg 2500kg 3000kg
Platform width 1300mm 1450mm 1700mm 1850mm
Max pile height 1600mm 1600mm 1600mm 1600mm
Min pile height 800mm 850mm 850mm 900mm
Power 380V, 10KW 380V, 12KW 380V, 14KW 380V, 22KW
Dimension 10600×2400×2750mm 11400×2600×2950mm 13000×2700×2950mm 13800×2900×2950mm
Machine weight 3500kg 4800kg 6500kg 8000kg
Key Features
  • Dust Removal: Effectively removes paper fibers, scraps, and printing powders to improve print quality and reduce defects by approximately 80%
  • Paper Separation: Uses vibration and air jetting to create air cushions between sheets, preventing mis-feeding and double-sheeting
  • Precision Alignment: Combines vibration platform with high-pressure air jetting for complete pile alignment in one operation
  • Efficient Turning: Handles double-sided printing paper piles with ease, improving workflow and reducing worker fatigue
  • High Productivity: Completes turning, dust removal, separation, and alignment in approximately 3 minutes
  • User-Friendly: Simple operation requiring no special training
Working Process

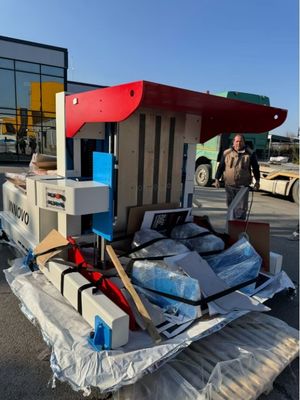

PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging 0
1. Loading pile into machine platform

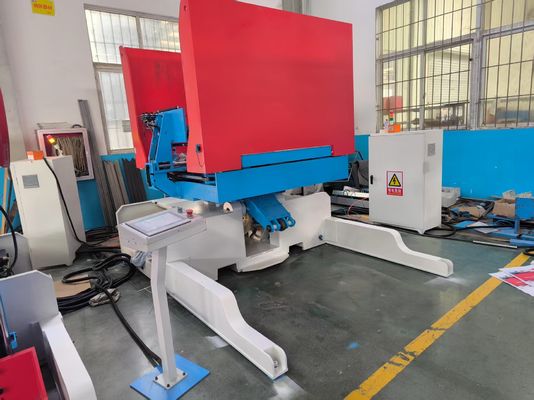

PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging 1
2. Turning, rotating and tilting process

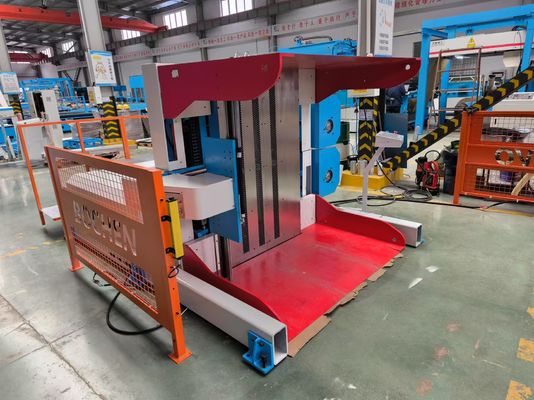

PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging 2
3. Dust removal and alignment process

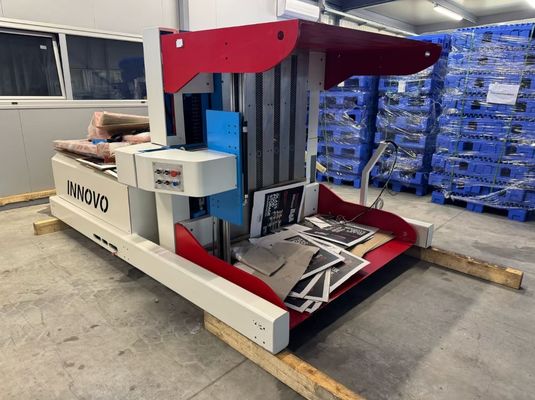

PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging 3
4. Finished pile ready for removal
Machine Overview
PT-1300/1650 Pile Turner Machine with 1.5 Tons Loading Weight and 50*60cm Min Material Size for Printing and Packaging 4
