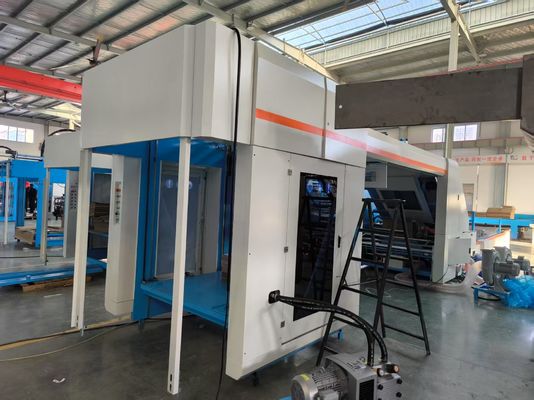

High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination

High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination

Ampliación de imagen :  High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination

Datos del producto:
Lugar de origen: Anhui
Nombre de la marca: Innovo Bochen
Certificación: CE
Número de modelo: GFS-1500/1700
Pago y Envío Términos:
Cantidad de orden mínima: 1 set
Precio: 60000-78000USD
Detalles de empaquetado: Bolsa de vacío
Tiempo de entrega: 30-45 días
Capacidad de la fuente: 30 conjuntos por mes
Contacto

High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination

descripción
Forma de pago: T/T o L/C Peso neto de la máquina: 9.5ton
Tipo de laminación: papel a cartón o cartón a corrugador Línea velocidad máxima: 210m/min o 24000pcs/hora
Tiempo de garantía: 2 años o 24 meses Tamaño máximo de la hoja: 1500*1500 mm y 1700*1700 mm
Fuente de alimentación: 380V/50Hz 3 fases Grueso de papel de la cara: Papel o cartón impreso de 100-800 g/m²
Tipo de Maeketing: Completamente inteligente Fuerza: 30kw
Solicitud: Laminando cartón y cartón corrugado
Resaltar:

Max Line Speed 210m/min Flute Laminator Machine

,

Max Sheet Size 1500*1500mm Cardboard Laminating Machine

,

Power 30KW Corrugated Laminating Machine

Circulating Glue System High Speed Flute Laminator Machine GFS1500
Reduced Glue Consumption in Corrugated Lamination
Performance Characteristics
  • Lead edge feeding system: No feeding pressure structure, prevents damage to corrugated material while enhancing pressure resistance.
  • Top sheet aligner system: Ensures high accuracy with optional overlap or separation sheet feeding modes.
  • Digital glue volume control: Automatic adjustment of glue volume and gluing roller gap based on bottom sheet thickness.
  • Large stainless steel anilox roller (160mm diameter): Provides stable, high-efficiency operation with even coating and glue savings.
  • Automatic paper detection: Servo correction technology ensures top paper accurately tracks bottom paper.
  • Dual-use lifting platform: Accommodates both pre-stacker paper feeding and direct stack feeding.
  • Multifunctional rack: Designed for curved corrugated materials.
  • Circulating glue system: Reduces glue loss and maintains stable adhesion.
  • One-click adjustment: Whole machine setup with simple paper size input.
  • Order memory function: Quick recall of previous settings for efficient operation.
  • Video monitoring: Optional system for operational oversight.
Technical Specifications
Model GFS1500 GFS-1700 GFS-1900 GFS-2200
Max size 1500×15000mm 1700×1700mm 1900×1900mm 2200×2100mm
Min size 360×380mm 380×400mm 450×450mm 500×500mm
Top Paper 120-800g 120-800g 120-800g 120-800g
Bottom paper 300gsm-10mm Corrugated board and cardboard
Max speed 180m/min 180m/min 180m/min 180m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1.0mm ±1.0mm ±1.0mm ±1.0mm
Structural Features
  • Advanced transmission control system with automatic paper size adjustment
  • Computerized high-speed fitting capability (up to 18,000 pieces/hour)
  • Chuanliu-type air supply head with multiple nozzle configurations
  • Feida Block system for efficient cardboard handling with optional track-assisted pre-stacker
  • Multiple electric eye sensors for precise paper alignment
  • Full-function electronic control system with human-machine interface and PLC monitoring
  • Automatic glue replenishment system with recycling capability
System Components

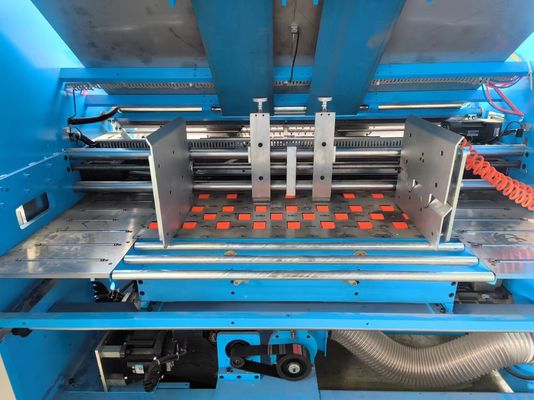

Bottom Paper Feeding
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 0
Servo motor controlled system with Japan NITTA suction belt for smooth operation

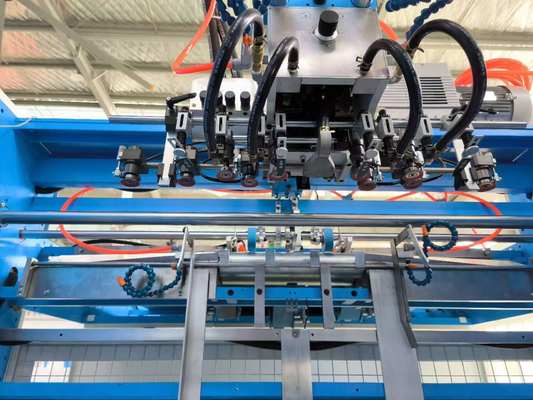

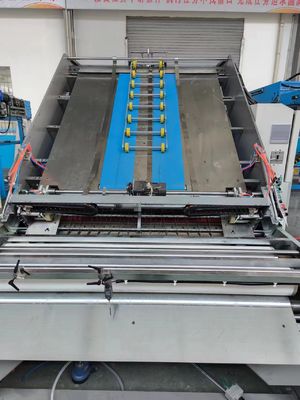

Top Sheet Feeding Mechanism
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 1 High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 2
Adjustable system for both thin and thick paper with Becker pump for smooth operation
Electrical System
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 3
CE-compliant system with PLC and human-machine interface for comprehensive monitoring
Pre-Stack Part
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 4
Automated system reduces setup time with preset paper size configuration
Transmission System
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 5 High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 6
Gates synchronical belt with SKF bearings for stable operation
Left-Right Positioning System
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 7
Positioning System & Glue Roller
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 8
Precision stainless steel roller with multiple photoelectric sensors for accurate alignment
Touch Screen Operation System
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 9
Centralized control with real-time monitoring and troubleshooting
Big Suction System for Bottom Paper (Optional)
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 10 High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 11
Optional system for enhanced handling of cardboard and multi-layer materials
Automatic Lubrication System
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 12
Regular bearing lubrication extends component lifespan
Shaftless Servo Feeder (Optional)
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 13
Optional system ideal for long size top sheets
Video Monitoring (Optional)
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 14
Optional system for remote machine monitoring
Machine Overview
High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination 15
